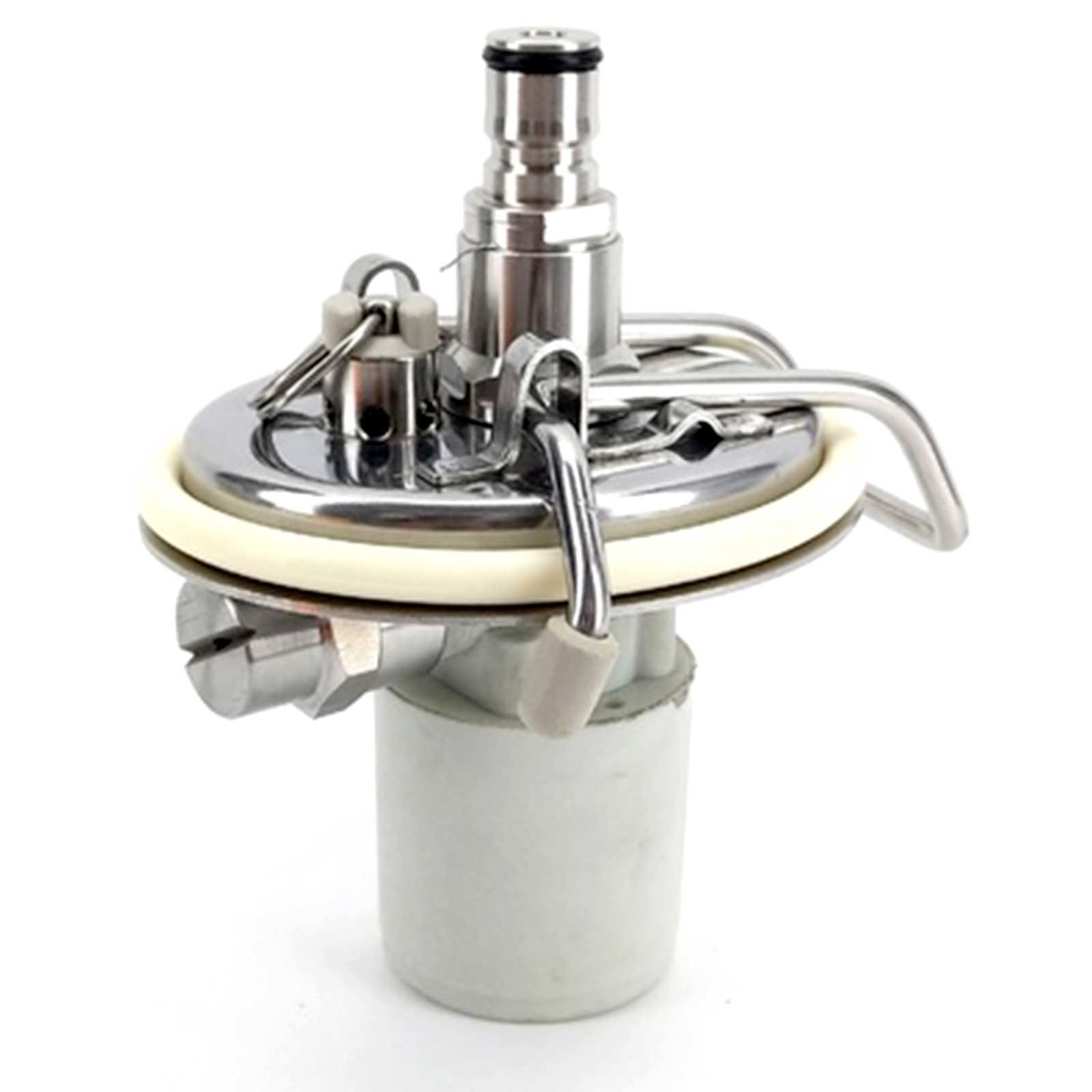

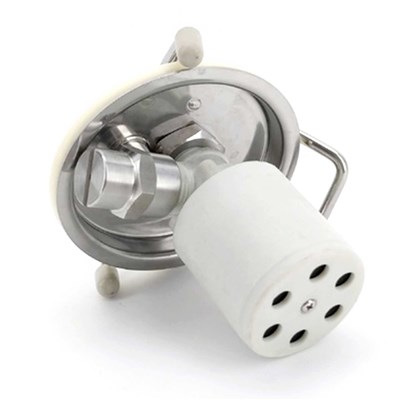

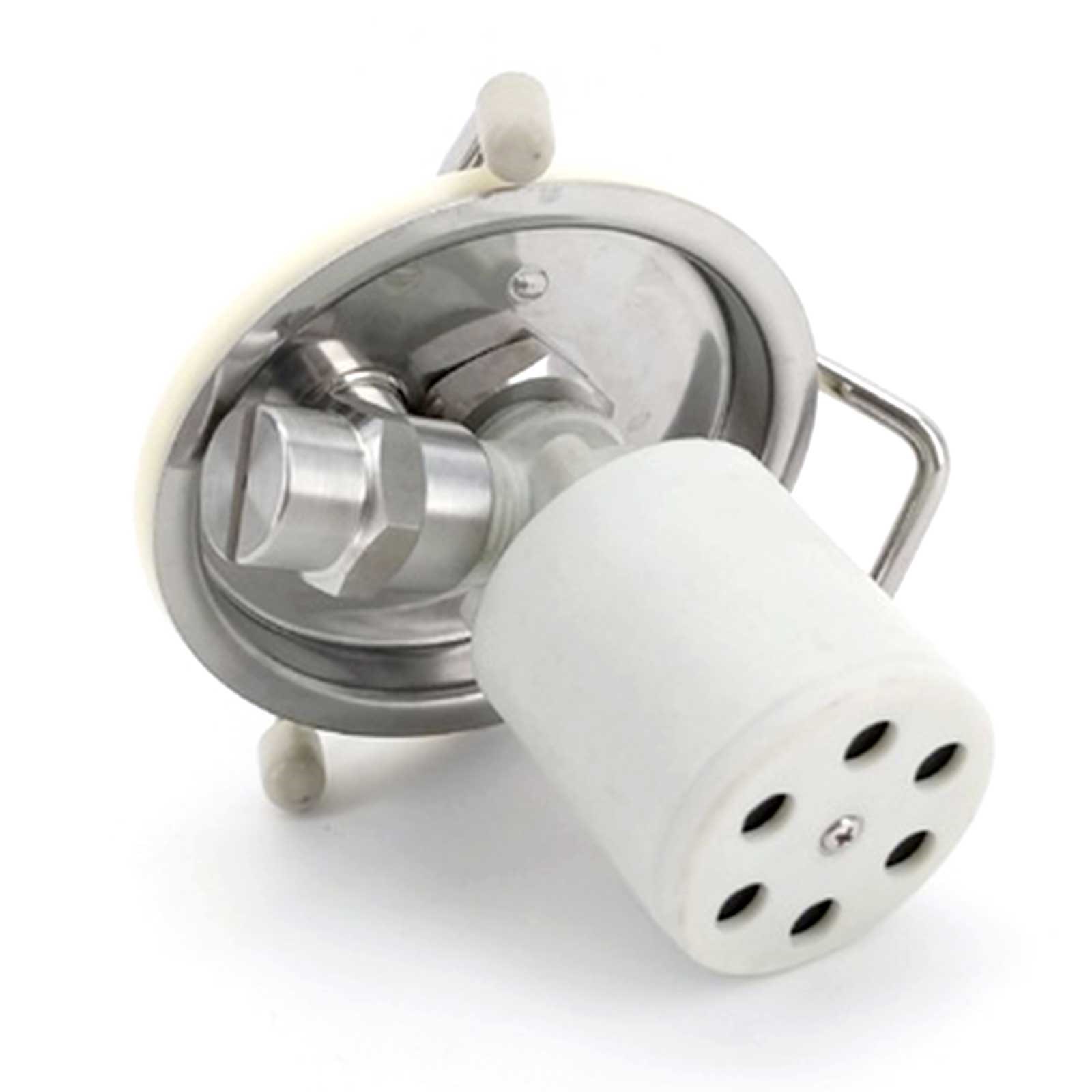

Continuous Soda Carbonator Keg Lid

Continuous Soda Carbonator Keg Lid

Enjoy Soda Water On Tap—Anytime, At Home

Nothing beats cold, sparkling soda water on tap—and now you can enjoy it without constantly refilling bottles or buying expensive CO2 cartridges. Soda Stream units are handy, but they’re not ideal for heavy use. That’s where the Continuous Soda Carbonator Keg Reactor Solution comes in.

This system uses a specially designed keg lid that fits any standard ball lock keg, turning it into a continuous soda water carbonator. It’s an easy, cost-effective upgrade that provides steady carbonation whenever you want it.

For best performance, your mains water pressure should be about 10–15 psi higher than your regulator setting.

That’s all you need. This simple setup gives you continuous, on-demand soda water straight from your water line.

Setup Instructions:

1. Chill the Keg:
   Place your keg in a refrigerator or kegerator, keeping the temperature below 40°F (4°C) for optimal carbonation.

2. Connect the Beverage Line:
   Attach your soda water draft line to the liquid out post of the keg.

3. Connect the Gas Line:
   Hook up your CO2 gas line to the gas-in post. Set your regulator pressure between 30–50 psi, depending on your desired carbonation level. Tip: Use a check valve on the gas line to prevent backflow.

4. Purge the Headspace:
   Before use, release any air from the keg’s headspace to ensure proper carbonation.

5. Connect the Water Supply:
   Attach your mains water line to the water inlet post on the keg lid.
