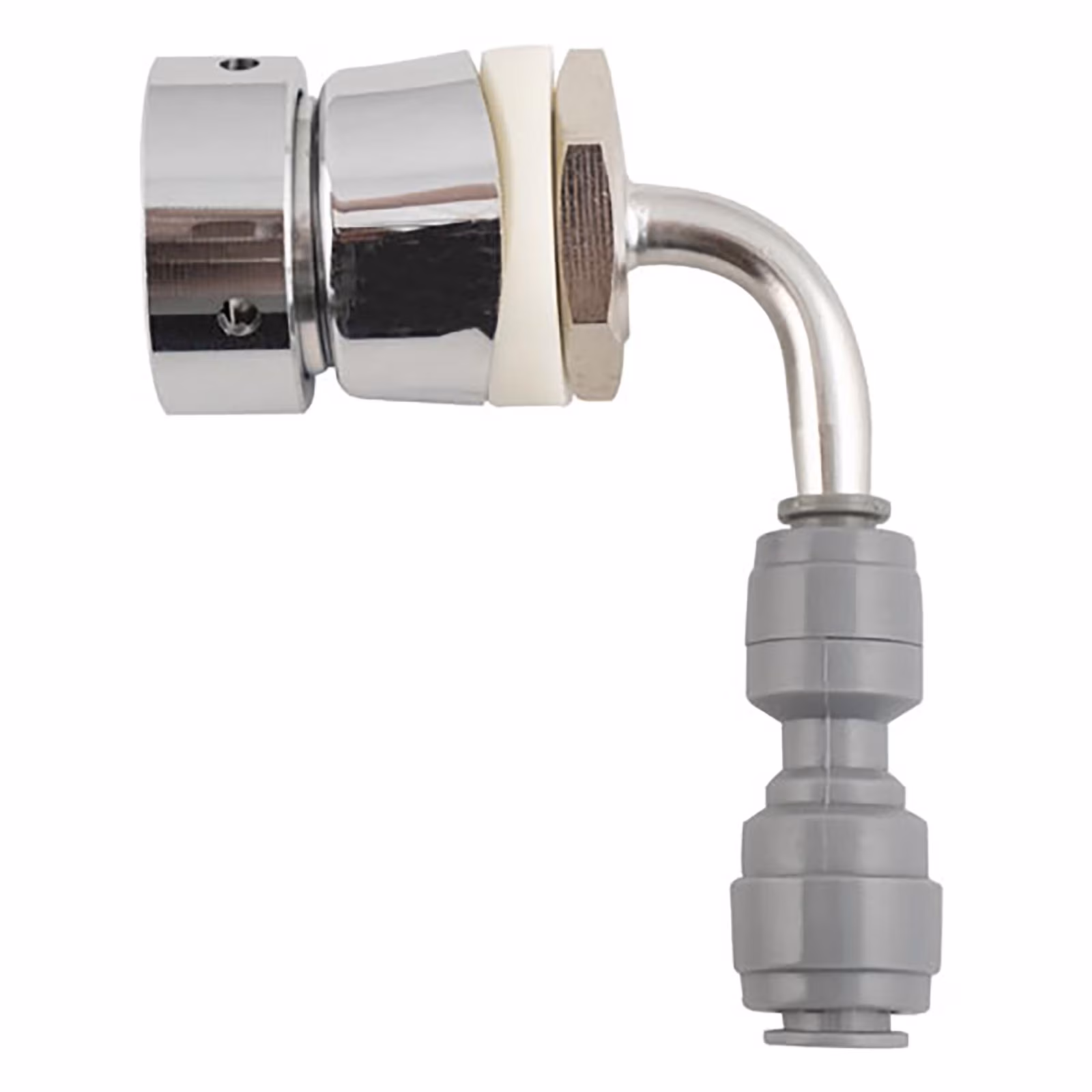

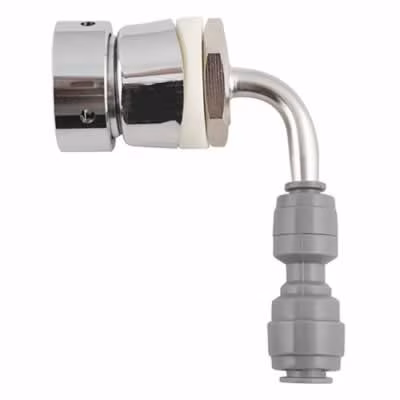

This Dutight fitting is designed to fit directly on a 6.35mm barb of a tower shank. These are designed to be used with a specific tower shank, the Intertap Stainless Steel Tower Shank.

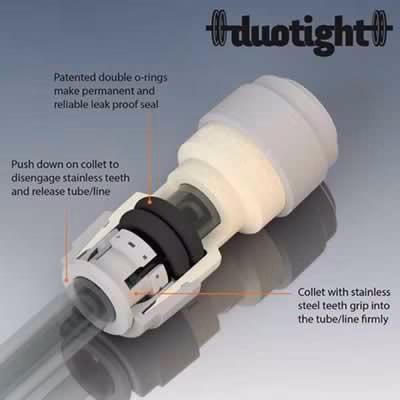

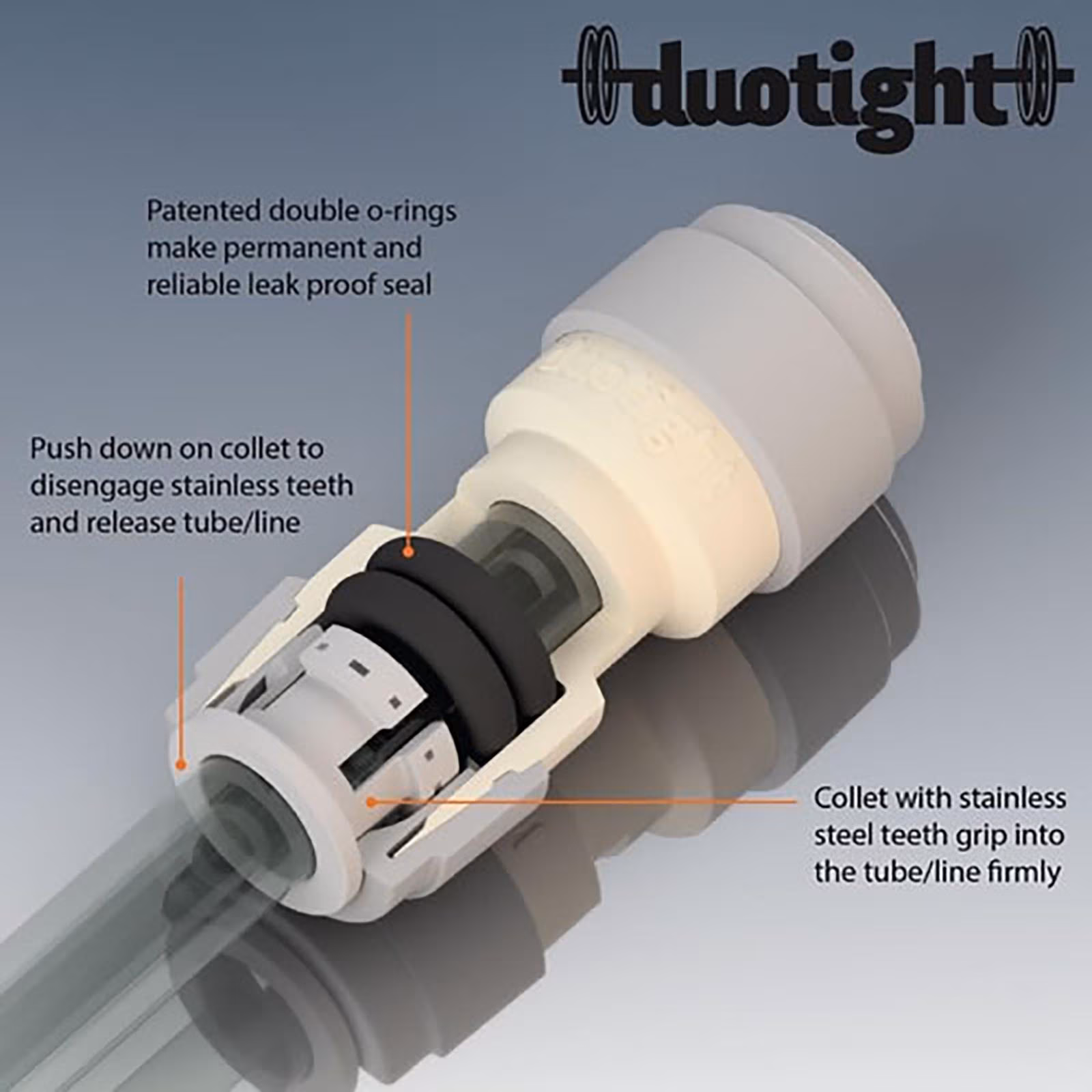

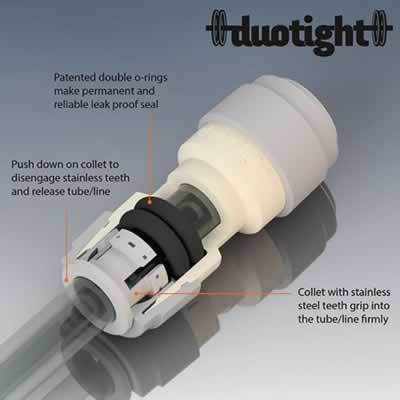

Duotight fittings feature a dual oring design that give you a better, more reliable seal.
Keep the following in mind when using Duotight fittings:
- You need to cut your hose straight (not at an angle) and firmly push the hose into the fitting until it locks in place.
- If you need to remove the hose, but pull back on the collet.
- Can be used with liquid or gas. Made from acetal plastic and the orings are made from EPDM, which is chemical resistant.
- Do not use with chlorinated cleaning solutions including bleach. This will degrade the plastic.
- No clamps are used. The hose is clamped internally by the collet and orings.
- Temperature rated to boiling (212) and pressure rated to 150PSI.
Draft Equipment/Hardware/Duotight Fittings;Draft Equipment/Hardware/Duotight Fittings/Tower Shank

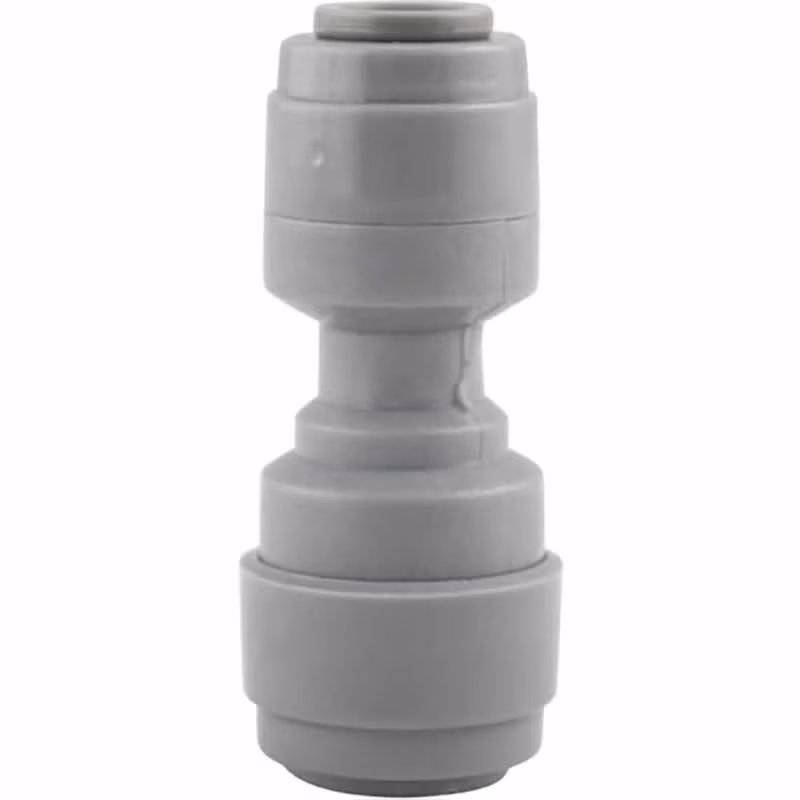

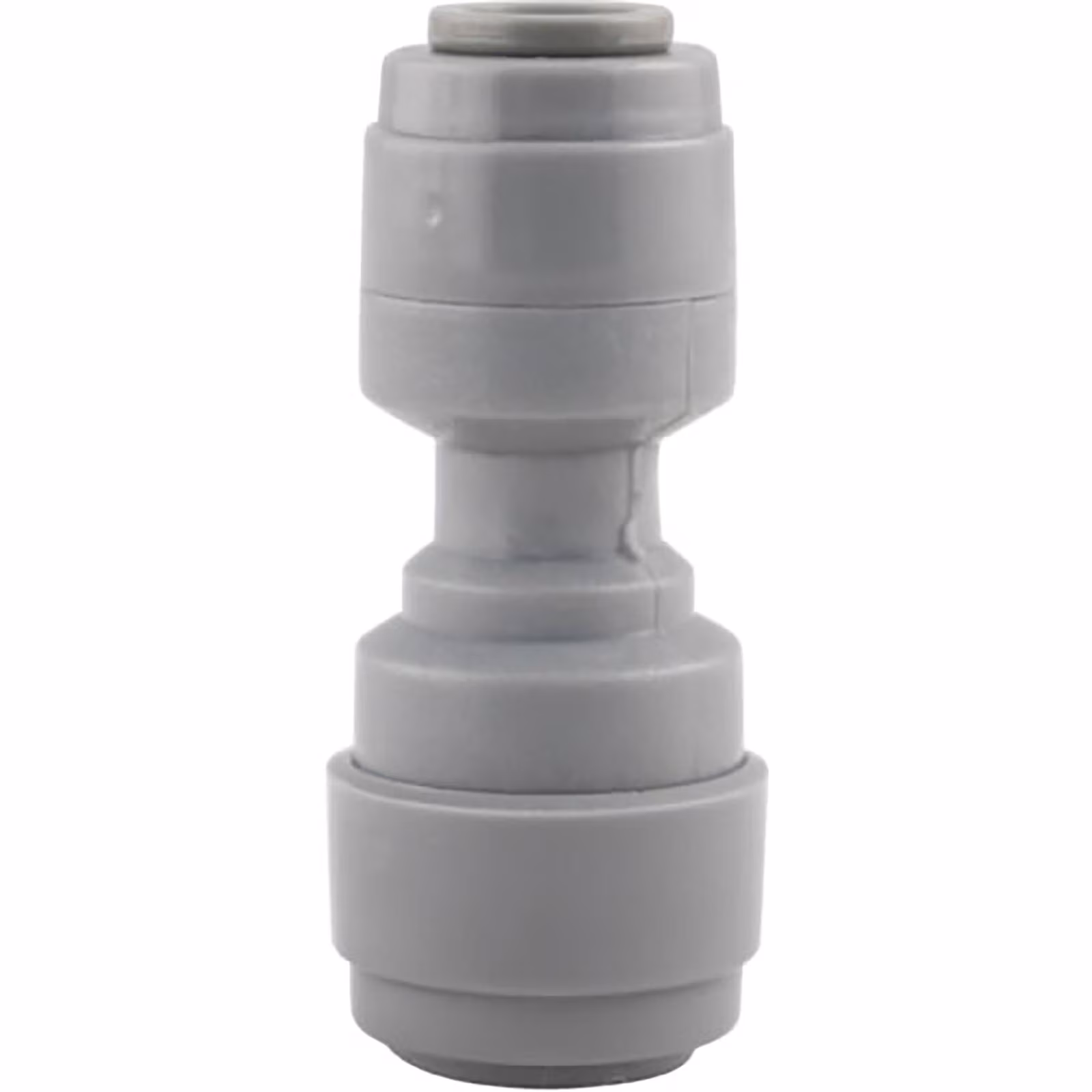

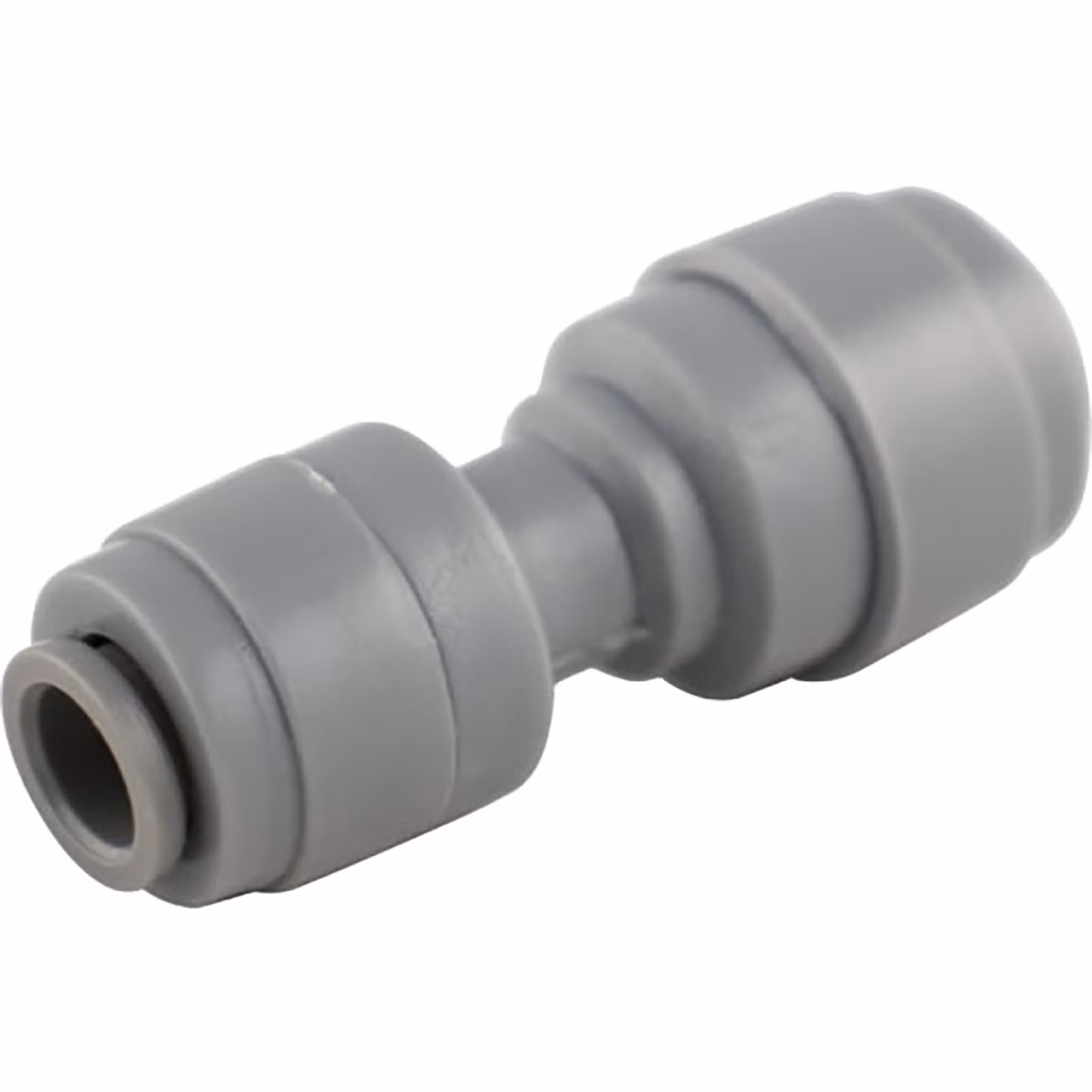

Duotight Push-In Fitting - 6.35 mm (1/4 in.) x 8 mm (5/16 in.) Reducer
Scroll to view product options.
| Item / Part # |
Price |
|
Duotight Push-In Fitting - 6.35 mm (1/4 in.) x 8 mm (5/16 in.) Reducer
DUO100
|
$3.25 |
